Multi Power 2 Scalable online three phase to three phase modular UPS

Free transportation to the installation site
Free initial installation and setup
2-year official warranty and 10 years of after-sales service

Multi Power 2 Scalable online three phase to three phase modular UPS

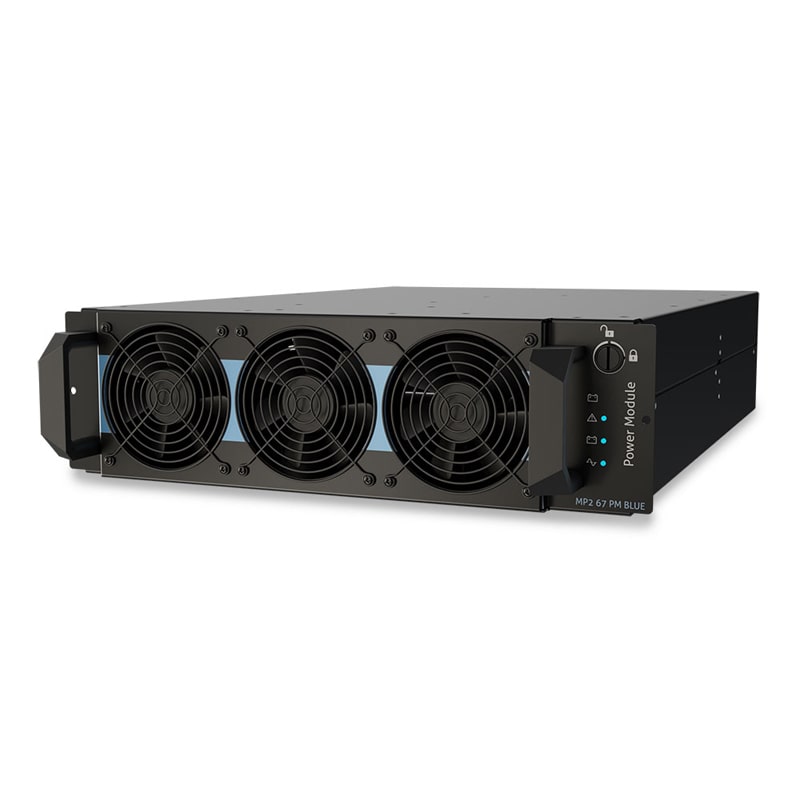

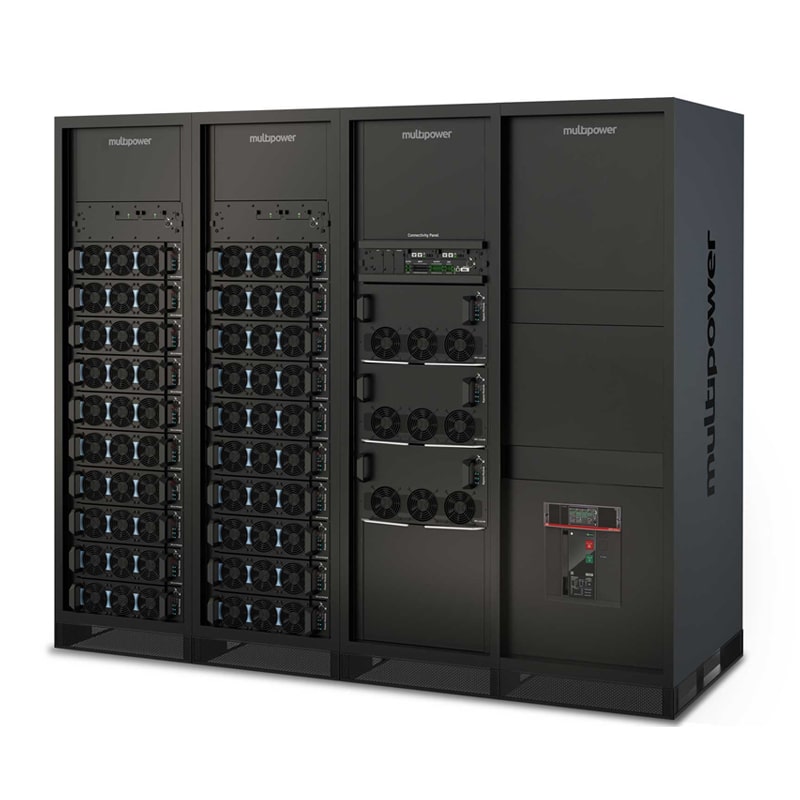

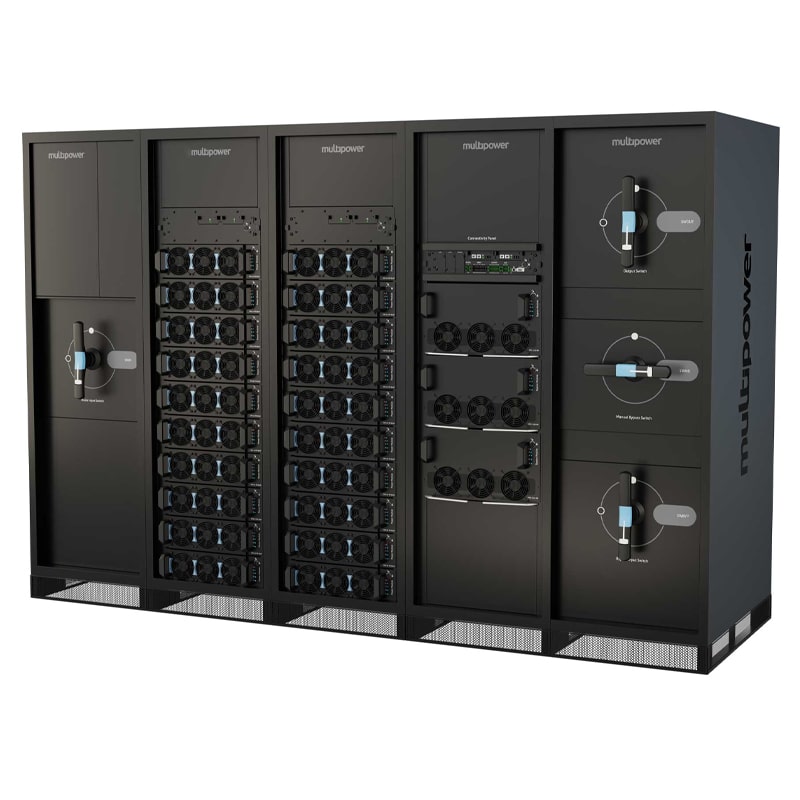

The Multi Power 2 Scalable modular UPS, the pinnacle of the Multi Power 2 family evolution, with an enormous power capacity of 1000 to 1600 kW, provides uncompromising protection for data centers and AI applications; this UPS offers exceptional scalability up to 6400 kW with 4 parallel frames. Featuring advanced 67 kW modules, it delivers an exceptional 98.1% efficiency in online mode and an output power factor of 1, making it an ideal choice for data centers. The use of Silicon Carbide (SiC) technology in the power modules reduces energy and heat losses, minimizing the need for energy-intensive cooling systems and offering a reliable and sustainable solution. The Smart Modular Architecture (SMA) in this UPS automatically monitors module health and synchronizes the firmware of connected modules; with two independent communication buses and redundancy, it ensures operational continuity even in the event of module failures. The hot-swap capability of the modules enables seamless power expansion, while the efficiency control system optimizes efficiency and redundancy by intelligently activating the required number of modules. Its wide input voltage acceptance range (up to 40% below nominal voltage at half load) keeps the rectifier active, preventing battery switching; the system maintains operation without battery use even during a single-phase outage (up to 66% load) or a two-phase outage (up to 33% load). The Power Walk-in feature in the rectifier gradually ramps up the input current, preventing sudden stress on input sources and ensuring more stable performance. The variable battery count (30 to 44 units) highlights the high flexibility of the Multi Power 2 Scalable; with 30 batteries, 75% of the capacity is usable. Configurations such as PC0 (without switches), PCS (with input/output/bypass/manual bypass switch sets), CT0 (space-optimized with backfeed protection), and CT2 (with main switches and backfeed protection) enhance installation flexibility. The high-resolution 7-inch touchscreen display graphically presents the UPS parameters and operating status.

Ask Me!

4.8 ★ i

Performance
Reliability
Features
Build Quality
Value for Price

(Generated by AI)

* Model:

* Power module qty.:

* Required backup time:

Other:

Parallel kit Battery temperature sensor Cold start kit Top ventilation kit (Only with Blue PM) DC coupling kit Single input kit (Only PC0)

Quantity:

Purchase Steps
Step 1: Needs Assessment and Solution Proposal
Our technical experts begin by understanding the customer’s specific power requirements, operating environment, and long-term goals. Based on this assessment, we recommend the most suitable products and system configurations tailored to the client’s needs.
Step 2: Purchase Request and Quotation Preparation
Once the customer expresses interest in a particular solution, we formally receive their purchase request. In response, we prepare a detailed price quotation covering the proposed products and services.
Step 3: Proforma Invoice Issuance
Following the quotation phase, a proforma invoice is issued for the selected items. This document outlines all financial and logistical details necessary for the customer to proceed with the purchase.
Step 4: Confirmation and Payment Agreement
Upon the customer’s approval of the proforma invoice, both parties finalize the payment terms, including method, schedule, and any applicable conditions. This step confirms mutual agreement and initiates the order process.
Step 5: Procurement and Final Invoice
After confirming the order, our team begins the procurement process for the approved items. Once ready, we issue the final invoice to the customer based on the agreed terms and confirmed specifications.
Step 6: Delivery, Warranty, and Handover
The final step includes preparing the goods for delivery, issuing official warranty documentation, and ensuring all contractual obligations are met. The products are then handed over to the customer in accordance with the agreed timeline and conditions.

Product Originality

At Zener Eng. Co., we understand that today’s smart buyers seek original, high-quality products those manufactured by reputable, well-established companies that invest in research, development, and quality assurance. We fully respect this expectation and are committed to offering only genuine products, with full guarantees of authenticity and performance.
Driven by our core values of honesty and customer-centric service, we go to great lengths to ensure that every product we offer is authentic, officially sourced, and backed by valid warranties. All items are verified with original manufacturer serial numbers, untampered, and legally imported into the country.
The equipment and devices we supply are fully covered under warranty. In the event of any issue during the warranty period, our customers benefit from full after-sales support and technical service provided by Zener Engineering Company.
Customer satisfaction is a fundamental organizational goal for us. We constantly measure our success in this area through feedback and experiences shared by our valued clients.
Unfortunately, it is not uncommon for buyers to encounter sellers who promise originality and official warranties, only to discover when problems arise that the product was not genuine or the warranty was invalid. This leads to frustration and a lack of trust in the purchasing process.
At Zener, one of our key missions is to eliminate such concerns by creating a sense of trust and peace of mind for our customers. We want you to feel confident in every purchase you make with us. To that end, we are always ready to provide official documentation verifying the authenticity and origin of any product upon request.

Warranty Terms

Support Services

Power Estimation

UPS/Model

Select Model

UPS/Input

Nominal Voltage

380, 400, 415 VAC three-phase + N

Voltage Range

240 to 480 VAC @ 50% load, 340 to 480 VAC @ 100% load

Frequency Range

50 or 60 Hz (tolerance 40 to 72 Hz)

Power Factor

0.99

Voltage Distortion (THDi)

< 3%

Inlet Type

terminal

UPS/Bypass

Voltage Range

from 180 VAC (adjustable 180 to 200 VAC) to 264 VAC (adjustable 250 to 264 VAC) referring to Neutral

Frequency Range

50 or 60 Hz ±5% (selectable)

UPS/Output

Power

- select a model from top -

Nominal Voltage

380, 400, 415 VAC three-phase + N (selectable)

Voltage Variation

static variation ±1%, dynamic variation EN62040-3 class performance 1 non-linear load

Frequency Range

50 or 60 Hz (selectable)

Power Factor

Voltage Distortion (THDv)

< 1.5% with linear load, < 2.5% with non-linear load

Outlet Type

terminal

Wave form

sinusoidal

Efficiency

up to 98.1% in online mode

UPS/Battery

Battery Type

external

Qty × Voltage

nominal: 40 × 12 = 480 VDC, variable: min 30 pcs (75% of UPS power available), max 44 pcs

Recharging Time

UPS/Protections

Overload

125% for 10 min; 150% for 1 min

Protections

over-current, short-circuit, over-voltage, under-voltage, over-temperature, excessive low battery

Alarms

line failure, battery low, over-load, fault conditions

UPS/Physical

Dimensions (W × D × H)

- select a model from top -

Weight

- select a model from top -

UPS/Environment

Working Temperature

ambient: min 0 °C, max 40 °C, recommended for battery life: 20 to 25 °C

Working Humidity

max 95% non-condensing

Altitude Level

1000 m @ nominal power (Derating 1% power for every 100 m above 1000 m, max 6000 m)

Noise Level

UPS/Others

Communications

2× RS232 + dry contacts + 2 slots for communications interface

Standards

European directives: LV 2014/35/EU low voltage Directive EMC 2014/30/EU electromagnetic compatibility Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2 - category C2; RoHS compliant Classification in accordance with IEC 62040-3 (Voltage Frequency Indipendent) VFI - SS - 111

Other Specifications

PC0: without switches, including full power module
PCS: with input, bypass, output, manual bypass switches, including full power module
CT0: with backfeed device, without switches, including full power module
CT2: with input, output switches and backfeed device, including full power module

What is the maximum power capacity of the Multi Power2 Scalable UPS?
The Multi Power2 Scalable UPS offers a scalable power range from 1,000 kW to 1,600 kW in a single unit. When configured in parallel, up to four systems can operate together, providing a total capacity of up to 6,400 kW. This scalability ensures that the system can grow with your power requirements.

Can the Multi Power2 Scalable UPS operate in high ambient temperatures?
Yes, the Multi Power2 Scalable is designed to operate in ambient temperatures up to 40°C without derating. This capability reduces the need for extensive cooling systems, leading to cost savings and increased reliability in various environments.

Multi Power 2 Scalable UPS
pdf | Oct. 24 2025 | brochure | FA
