PRODUCTS / TRANSFER SYSTEM

Reliable transfer systems available in 16 A and 30 A models, designed to ensure seamless switching between power sources in UPS and backup power applications. Built for safety, durability, and consistent performance in critical environments.

What is an automatic transfer switch (ATS) and why is it important?

An Automatic Transfer Switch (ATS) is a device that ensures seamless and automatic switching between two independent power sources typically input A and input B without any interruption. It is especially useful for single-power-input devices that require high availability, allowing them to benefit from dual-power redundancy. With priority settings, you can define which source (A or B) should be used as the primary, and the switch will automatically revert to it when it's restored. This guarantees uninterrupted operation and enhanced protection for critical loads.

  • Free transportation to the installation site
  • Free initial installation and setup
  • 2-year official warranty and 10 years of after-sales service

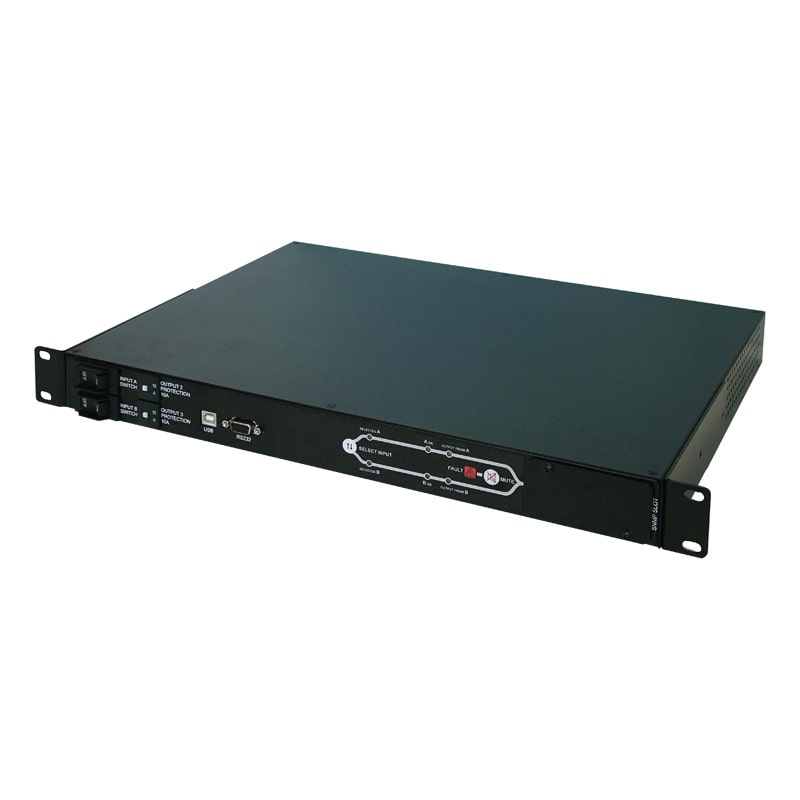

Automatic transfer system 16, 32 A

The Multi Switch ATS is an automatic power switch that allows loads to be powered by two separate AC power inputs to which they are connected. In fact, the loads connected to this device are powered from two sources. These two sources can be any type of alternative power such as city electricity, diesel generators, UPS and etc. In the event of a problem with the main input power supply, such as a drop in voltage and frequency or a power failure, the system will automatically supply power to loads in the shortest possible time through the second input power supply.

Read more...
Type
Automatic transfer switch
Current range
16 or 30 A
Installation type
Rackmount
Transfer time
8 to 20 ms
Features:

 Automatic transfer between two sources

 Rackmount installation

 With standard IEC outlets

 Complete protection circuit

 Equipped with relay contact

 Monitoring via network feature

Whats in the packing:
user manual iconUser Manual
* Model:
- +
 Purchase Steps

 Purchase Steps

 Product Originality

 Product Originality

Transfer System/Model
Select Model
Transfer System/Input
Nominal Voltage
230 VAC single phage + N
Voltage Range
- select a model from top -
Frequency Range
50 or 60 Hz
Max Current
- select a model from top -
Inlet Type
- select a model from top -
Transfer System/Output
Nominal Voltage
choice of one of the two input power sources
Max Current
10 A on IEC 320 C13, 16 A on IEC 320 C19
Transfer Time
typical: 8 ms, maximum: 20 ms
Efficiency
up to 99% @ full load
Outlet Type
- select a model from top -
Transfer System/Physical
Dimensions (W × D × H)
490 × 330 × 44 mm (1U)
Weight
5 kg
Transfer System/Environment
Working Temperature
ambient: min 0 °C, max 40 °C
Working Humidity
max 95% non-condensing
Noise Level
max 35 dBA @ 1 m
Transfer System/Others
Protections
over-current, short-circuit
Communications
RS232, USB, slot for communication interface, relay contacts port
Standards
EN 62310-1 (Safety), EN 62310-2 (Electro-magnetic compability)

How does this device ensure the reliability of power supply to consumers?
ATS provides redundant power to loads with two independent AC inputs. In case of voltage drop, frequency change, or failure of the primary source, it automatically switches to the secondary source (instantaneously if the sources are in phase). This feature is ideal for sensitive loads requiring continuous operation, preventing any interruptions.
Is this device compatible with UPS systems from different brands?
Yes, the Multi Switch ATS can operate with two different power sources, including UPS systems of varying sizes and types. This flexibility allows its use in diverse environments with combinations of sources such as mains power, diesel generators, or UPS systems, without the need for source synchronization.
